initially my question was about how to fix my code. You informed me that usage of that python class will not work with my setup of one motor. I agree and I want to instead use the GPIO library to control the board controlling the motor. the example code I found:
enter image description here

import RPi.GPIO as GPIO
import time
GPIO.setmode(GPIO.BCM)
GPIO.setup(23, GPIO.IN)
while True:
   if ( GPIO.input(23) == False ):
      print(‘do something’)

I do not know how to edit the code to work with my project.] but I am using IN1 on the controller board and GPIO2 from the pi.

I answered this question but it's not an answer, it is more of a notice that I am going to use different parts. Many of the answers here pointed out that I should try the tutorials and/or use different parts so I will. thanks to everyone who helped!!

thecanmanisback
  • 53
  • 7
  • 2
    which part of the code do you not understand? – jsotola May 13 '19 at 01:51
  • 1
    You are trying to run before you can walk. You need to understand some basics before attempting this task. I suggest you work through 1) some Python tutorials and 2) look at https://projects.raspberrypi.org/en/projects/?interests[]=robotics – joan May 13 '19 at 07:22
  • I am not trying to skip steps, I will gladly do tutorials, thanks! – thecanmanisback May 13 '19 at 23:59

4 Answers4

1

I am just going to use different parts. These parts are not usable or are too hard to use at this point so I am going to use different motors and stick with GPIOzero

thecanmanisback
  • 53
  • 7
0

The line robot = Robot(left = (2, 2), right = (2, 2)) is saying you are controlling the left motor with GPIO 2 and 2 and the right motor with GPIO 2 and 2. This is illegal.

You need to specify four different GPIO. Two GPIO are needed to control each motor as follows:

GPIO#1 GPIO#2  motor
0      0       stop
0      1       clockwise
1      0       counterclockwise
1      1       brake

See https://gpiozero.readthedocs.io/en/stable/api_boards.html#robot

joan
  • 71,024
  • 5
  • 73
  • 106
  • It is only 1 motor. The project is a pi with GPIO2 connected to an H-Bridge which is connected to 1 motor on a car. should that line be robot = Robot(left = (2, 1), right = (2, 1))? – thecanmanisback May 12 '19 at 22:07
  • Frankly it sounds wrong. The robot class expects a left and right motor being driven by a motor driver board. If you are not doing that you should not be using the robot class. – joan May 12 '19 at 22:12
  • oh no.
    1. I though the H-Bridge acted as the motor driver board... is that not true?

    2.The error was about the way I defined 'robot' so are you saying that the error is happening because I have 1 motor instead of 4? 3. What would you use instead of this class if it was your project? Would you use shell commands or just a different python class?

     – thecanmanisback May 12 '19 at 22:57
  • 1
    @thecanmanisback This is the wrong site to ask open ended questions. You would be better off asking on raspberrypi.org/forums. – joan May 12 '19 at 23:00
  • I edited my question at the top to fit more into what this forums is used for. @joan – thecanmanisback May 12 '19 at 23:40
0

I suggest you return to using gpiozero, but select a suitable class.

We don't know anything about your robot (include detail in your question).

I guess it has a single motor with forward/reverse so the following would be appropriate:-

https://gpiozero.readthedocs.io/en/v1.2.0/api_output.html#motor

Milliways
  • 59,890
  • 31
  • 101
  • 209

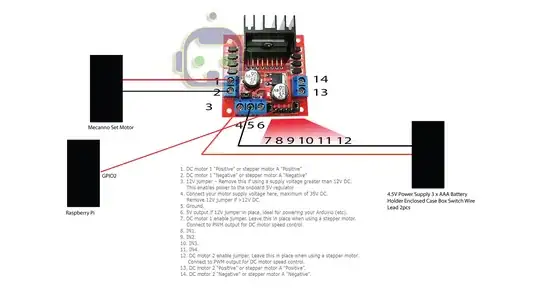

  • I made a diagram of my project that includes a lot of detail: https://snag.gy/7dL0pb.jpg
