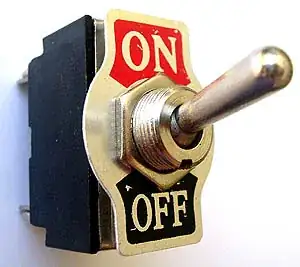

I have a raspberry pi 2 model b and I am trying to build a digital on of switch, which means that I would like to get rid of this physical one ( Currently it controls a police type flashing light)

ofOff

and Id like the light to switched on/off using software and GPIO pins. I have a breadboard with all the necessary equipment (wires, resistor and etc) . Could anyone please draw or show me basic circuit of how I could build it?

The power comes from a battery pack inside the light itself

DarkFeud
  • 1
  • 1

1 Answers1

0

How are you planing on powering the "police like flashing light"? If the power from the raspberry is enough you could write a simple python script that powers on and off the light.

L. Hidalgo
  • 48
  • 1
  • 6
  • no the batterypack is inside the light, I just would like to connect the on&off switch to control it from the raspberry pi – DarkFeud Mar 11 '16 at 23:35
  • Check this other post out, should be the solution you're looking for . http://raspberrypi.stackexchange.com/questions/41173/how-to-switch-on-off-a-circuit-using-gpio?rq=1 – L. Hidalgo Mar 12 '16 at 18:18
