How do you set up a munin-node on the Raspberry Pi?

Munin is a networked resource monitoring tool that can help analyze resource trends and "what just happened to kill our performance?" problems. It is designed to be very plug and play. A default installation provides a lot of graphs with almost no work.

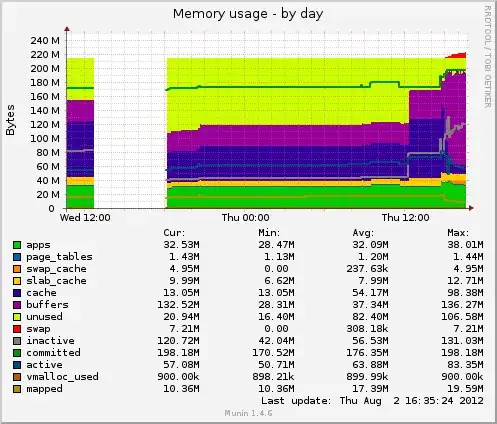

enter image description here

tlhIngan
  • 3,372
  • 5
  • 19
  • 33
John La Rooy
  • 11,947
  • 9
  • 47
  • 75

2 Answers2

10

For Raspbian, this has got me started so far:

Raspberry Pi is on 192.168.1.22
Munin Server is on 192.168.1.8

On the RPi as root

# apt-get install munin-node
# munin-node-configure --suggest --shell

Edit /etc/munin/munin-node.conf. Under this line

allow ^127\.0\.0\.1$

Add an entry for the munin server

allow ^192.168.1.8$

Now, you need to tell the server to look for this node, on the server edit /etc/munin/munin.conf. Add an entry for the RPi

[RPi.localdomain]
    address 192.168.1.22
    use_node_name yes
John La Rooy
  • 11,947
  • 9
  • 47
  • 75
2

If you only want to monitor a few simple things, check out muninlite. It's a fairly simple shell script which is meant to be run from inetd/xinetd. Since it's so small and only uses shell utilities, it's very easy to add your own plugins, e.g. if you want to monitor sensors connected to the GPIO pins.
