I'm trying to make my LED strip fade-in and fade-out by using Raspberry-pi 4, unfortunately for me, I am not an electronic expert. Every tutorial I saw so far was for RGB LED strips and I have a single-color(3000K) LED strip with just 2 pins (+ & -).
Im have:

  1. LRS-50-24 datasheet
  2. 30N06L datasheet
  3. 4m LED strip single color (3000K) 24V

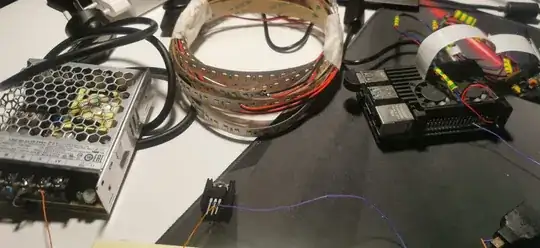

  4. Raspberry Pi 4 enter image description here

My question is how to connect the MOSFET and the LRS-50-24 to the PI in order to control the fade-in/out by GPIO python code?

Appreciate any help

Omri
  • 111
  • 2
  • Please let us know which led strip you are playing with: (1) Aliexpress 24V 4000k Led Strip: https://www.aliexpress.com/cheap/cheap-24v-4000k-led-strip.html – tlfong01 Mar 07 '21 at 00:25
  • 1
    @tlfong01 I bought it at a local store, I don't have much information about it except its 24V, 10Watt per meter and 3000K – Omri Mar 07 '21 at 07:59
  • 1
    @tlfong01 I dont see the wiring diagram in that video, could you check the link? – Omri Mar 07 '21 at 09:02
  • (1) Ha, if you are sure it is 24V, then you can take a small risk and test it with your 24V high class power supply, which should have short circuit protection. (2) You just connect 24V directly to the LED stripe and see if it lights up (I guess you might have tested it this way already. :)).(2) Your power MOSFET seems N-channel, so you should use it as a "Low side switch", see this wiring diagram: https://i.imgur.com/v5KszyF.jpg. (3) Please let me know you know more or less I am talking about. – tlfong01 Mar 07 '21 at 09:02
  • @Omn, sorry, I gave you the wrong link. I have edited my post. Please try again. – tlfong01 Mar 07 '21 at 09:03
  • 1
    (4) Your power mosfet's "Gate to Source Threshold" voltage Vgs(th) is (3V3 ~ 5V) logic level trigger. So you can use a jumper wire to connect DC voltage, say from a battery 3V to 6V to the gate terminal of the mosfet, which should switch on and light up your LED stripe. *WARNING*: Me just a friendly hobbyist, No guarantee no nothing wouldn't blow up or melt down. Good luck. Cheers. – tlfong01 Mar 07 '21 at 09:09
  • 2
    @tlfong01 the gate-source threshold voltage is too high for a 3.3V logic level. Vgs,th should not be more than half the logic voltage at most, especially if you switch high currents. So my judgement is: the mosfet is not suitable and it will become hot and may fail. – Sim Son Mar 07 '21 at 09:19
  • 1
    @SimSon what kind of mosfet do you suggest to use? – Omri Mar 07 '21 at 09:22
  • 1
    @Simson, I agree the OP's mosfet is not the best choice. I used to use IRL540N and found it OK for 3V2 logical level input, for "small" currents < 3A. An alternative is BSS240N. Imgur does not allow me to upload rubbish too frequently. So uploading BSS240N as an answer. – tlfong01 Mar 07 '21 at 09:44
  • 1
    As I said, I suggest to use a MOSFET with a Vgs,th of no more than half the logic level voltage at max. – Sim Son Mar 07 '21 at 10:54
  • 1
    @SimSon good news. I replaced the MOSFET with IRLB8721 and it's working. BUT the power of the LED lights is very weak... why is that? reminder - it is 24V LED strip with 10watt per meter – Omri Mar 07 '21 at 12:03
  • 1
    Can you messure the voltage between drain and source? In case the mosfet is fully on it should be in the range of millivolts. – Sim Son Mar 07 '21 at 13:29
  • 1
    @SimSon when led turned off its 8.2V and when turned on (full bright) its 4.72V – Omri Mar 07 '21 at 13:53
  • 2
    I see, the IRLB8721 appears to be unsuitable, too. Its Vgs,th is 2.35V, but you need a mosfet with no more than 1.5V. Ideally, you want to measure 24V when the mosfet is off and 0V when it is on. – Sim Son Mar 07 '21 at 13:58
  • 1
    @SimSon what other features I should look up for when searching for the right mosfet? other than Vgs,th <= 1.5V. Any recommendations on how to search for it? – Omri Mar 07 '21 at 14:01
  • 1
    Well, voltage and current ratings are trivial. Next priority is Vgs,th to be as low as possible. When switching currents of more than 1A, the last thing is an on-resistance Rds,on as low as possible, as this will determine the final voltage drop (U=RI) and power dissipation (P=RI²) in the mosfet. But the most critical feature when controlling mosfets with a Pi really is Vgs,th. Search for "Logic Level MOSFETS". – Sim Son Mar 07 '21 at 14:07
  • 1
    @SimSon I tried looking for one here https://www.digikey.com/en/products/filter/discrete-semiconductor-products/278?s=N4IgTCBcDaILYHsDOAzApgFxAXQL5A but none have all features you recommended. I will really appreciate if you could help me find one or two which fits – Omri Mar 07 '21 at 14:18
  • Let us continue this discussion in chat. – Sim Son Mar 07 '21 at 14:56

1 Answers1

1

Non Answer

(1) This is not an answer, but just a temporary place to upload pictures. So this non answer would be deleted later.

The OP's MOSFET can be replaced by the following.

BSS214N

(2) The OP's mosfet 30N06L has a similar Vgs(th) spec to my favourite IRL540N. So I guess there is big chance it can happily entertain the OP's low current LED stripe.

irl540n

tlfong01
